Scissor lifting table

Reinhold Beck Maschinenbau GmbH TL 3000 Tandem

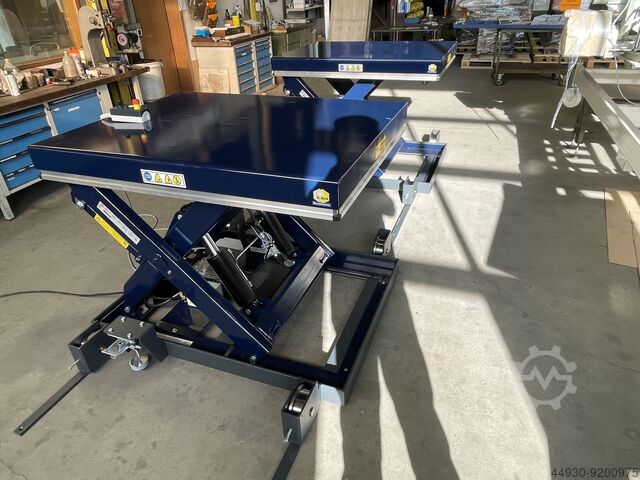

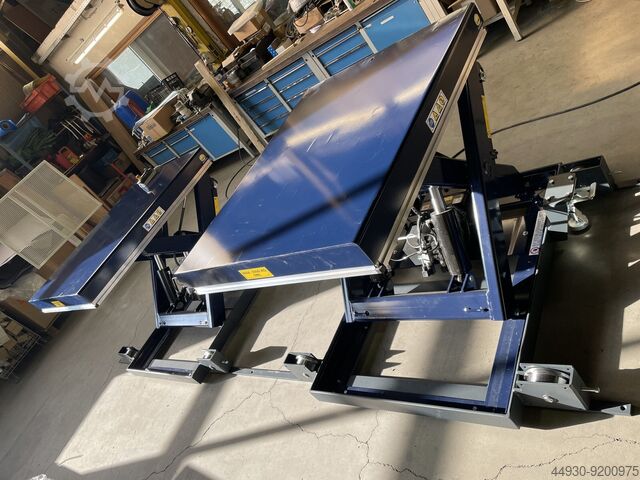

Two tables are connected via a tandem system to achieve a combined load capacity of 5000 kg.

Technical description with the following key data:

Load capacity: 3000 kg static line load
Useful stroke: 800 mm
Overall height: 240 mm
Total height: 1040 mm
Platform length: 1300 mm
Platform width: 1000 mm
Material: Smooth sheet metal
Lifting time: approx. 18 sec. for the full useful stroke
Bodpfx Ask E Hmteh Tjlp
Lowering time: load-dependent
Electrical connection: 3 x 400 V/50 Hz + protective earth, with 16 A CEE plug and 3-meter cable
Motor: 2.2 kW, 1400 rpm
Valve voltage: 24 V DC
Protection rating: IP 54 generally, solenoid valve and switch IP 65
Paint finish: Steel blue RAL 5011
Unit placement: integrated in the lifting table
Control box: Dead man's control including 2 m cable
Total weight: approx. 330 kg

Tandem control for synchronized operation.
Note: No guarantee can be given for 100% synchronous operation.
Any height differences that may occur will be compensated for in the base position or upper position.
The safety cut-out strips of the two lifting tables are NOT interlocked.
Minimum distance: 500 mm between the lifting tables.
Maximum distance: 3000 mm between the lifting tables.

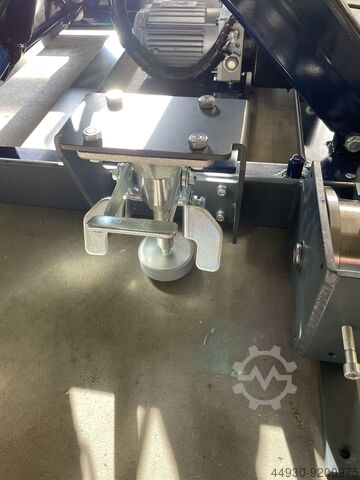

Self-supporting base frame with 4 flanged wheels, into which the lifting table is installed.
4 ball-bearing flanged wheels, wheel diameter 150/175, heavy-duty design for maximum load, made of turned steel C45.
Overall height: + approx. 50 mm.
