Hydraulic guillotine shear

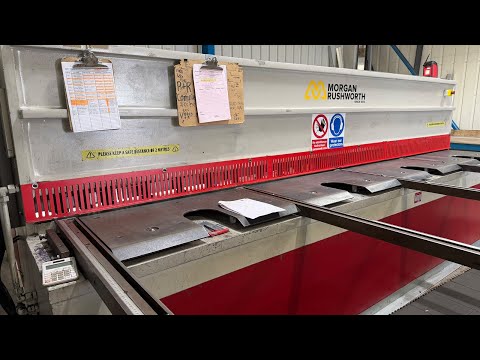

Morgan Rushworth HSGS 4100/6

Used Very Clean / Modern Morgan Rushworth 4metre x 6mm hydraulic industrial sheet metal guillotine machine for sale

The Morgan Rushworth HSGS 4100/6 (also designated as the 4100.6) is a heavy-duty NC Hydraulic Swing Beam Guillotine designed for industrial sheet metal cutting. The nomenclature indicates its primary capabilities: a maximum cutting length of 4100mm and a maximum cutting thickness of 6mm in mild steel.

Technical Specifications

• Cutting Length: 4100 mm / 4metre
• Max Material Thickness: 6 mm (Mild Steel)
• Stroke Capacity: 12 strokes per minute
• Hold Downs: 23 hydraulic hold-downs to secure the sheet metal during shearing
• Main Motor Power: 11 kW
Psdps Agu R Dofx Abxorc

Key Features & Operation

• Swing Beam Design: The upper blade travels in an arc, providing efficient cutting action and preventing the material from jamming against the lower blade.

• NC Control Panel: Equipped with specialized controllers like the SI Touch 8 or Cybelec CybTouch series. This system automates the X-axis backgauge distance, tracks material thickness settings, and stores user-programmed multi-stroke cycles.

• Blade Gap Adjustment: Rapid blade gap calibration can be adjusted via a manual lever or programmed dynamically through the touchscreen interface to align with the material's thickness.

• Material Support: Standard operational features include shadow line lighting for quick visual alignment, a powered backgauge with precise digital entry, and *optional pneumatic rear sheet supports to prevent thin materials from sagging. * to be confirmed

• Integrated Safety: Features structural fixed front guards with viewable high-visibility windows, multi-point emergency stops, rear safety fencing, and an optional advanced infrared or finger light guard detection system.
