Automatic lathe

HANWHA XD20III

MAIN SPINDLE
Maximum turning diameter: 20 mm
Max. spindle bore diameter: 24 mm
Maximum speed [rpm]: 10,000
Maximum power [kW]: 3.7
C-axis with 0.001°
Stroke Z1 [mm]: 50mm /160mm
Synchronous guide bush unit
Guide bush type: 22.001 / T223
Type of collet chuck: 145E / F25

COUNTER SPINDLE
Maximum speed [rpm]: 8,000
Maximum power [kW]: 2.2
Maximum pick-up diameter [mm]: 20
max. part length ejection to the front [mm]: 70
C-axis with 0.001°
Stroke Z2 [mm]: 215
Type of collet chuck: 145E / F25

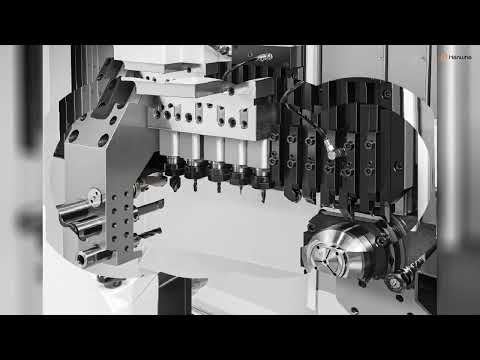

TOOLING OPTIONS
Tool slide X1,Y1:
- Tool holder plate for 6 external turning tools 12 x 12 mm
Cross drilling/milling device:
- Quantity: 4 driven ER16 modular drilling/milling spindles
- Power: [kW]: 1.1 (S6000)
- Front drilling unit for 5 drilling quills diameter 25 mm
Cross slide counter spindle
- Quantity: 2 driven drilling/milling spindles ER16 modular
- Power: [kW]: 1.0 (S6000)
Back machining
6 driven tools axial ER16
2 driven tools radial ER16
3 turning tool holders 12x12 XD20III
1.0 kW (Fanuc)
1.02 kW (Siemens)

TRAVERSING AXES AND CONNECTED LOAD
Number of servo axes: 5
Number of spindle axes: 2
Rapid traverse speeds m/min: 32m/min (Z1,Z2,Y,X2) ; 24 m/min (X1)
Connected load [KVA]: 15

CONTROL
Control type: Fanuc 0i-TF
Number of axes: 5 (X1, Z1, Y1, X2, Z2)
Simultaneous 4-axis control
External control panel with handwheel
10.4" color monitor LCD/MDI
Automatic switch-off function PowerOff
Program check function (test run possible via handwheel)
Bsdpfxstw Uzvo Ab Dsww
Continuous thread cutting cycle
Runtime display / parts counter
CF card interface
Tool radius compensation
Absolute reference point
Self-diagnosis function
Interface to bar feeder
Interface for JBS

ACCESSORIES / INCLUDED
Alignment shoes with leveling elements
Tool box and service tool set
Work area light
Signal lamp (3-color)
Safety door switch with interlock
Maintenance and central lubrication unit (1.8 liter lubricating oil volume)
Coolant flow monitoring
Pneumatic blow-out device for the pick-up spindle gripper
Manual and documentation in German and English (maintenance and operating instructions incl. parameter list and test log)
